A Conduit Schedule is made for several purposes. One is to pre-size up conduit and wire before the field installation crew arrives on site. The second reason is to remove wasted time from putting the thinking in the electricains lap.

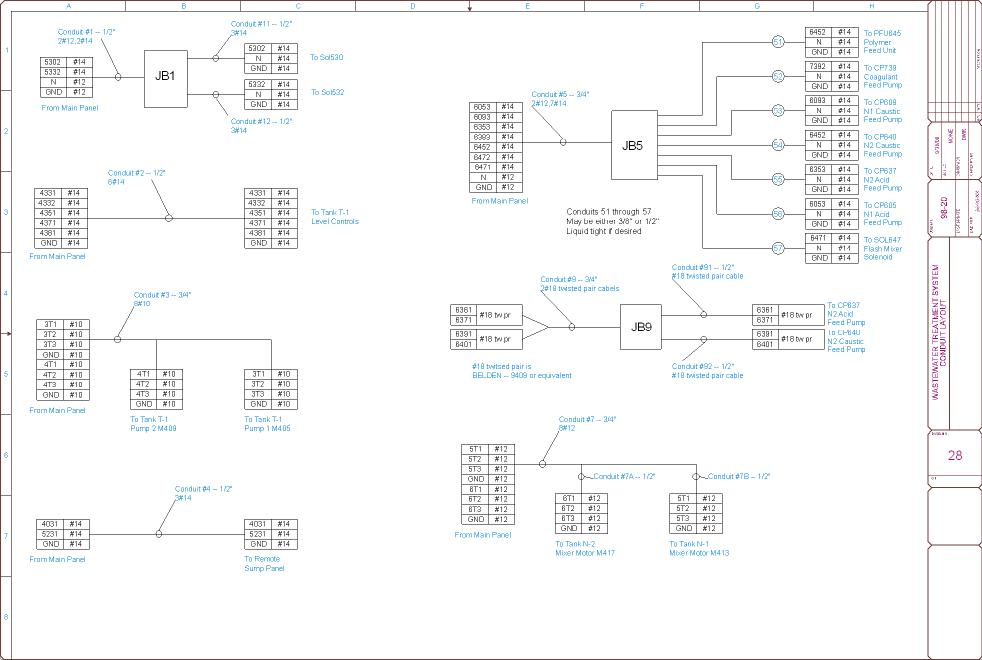

The conduit schedule shows every wire in all the junction box's and the size of the conduit.

This drawing is not standard with wire schematics, but can be ordered as an option.
